SpeedFun Rebel for Brose - Fantic
SpeedFun Ribelle for Brose - Fantic

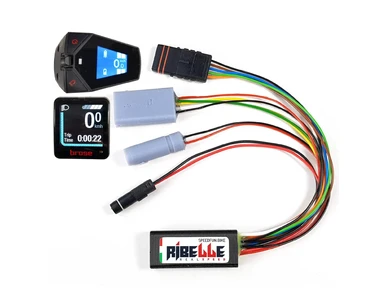

The SpeedFun Ribelle is a powerful tuning device for Fantic e-bikes equipped with a Brose motor. It removes the 25 km/h speed limiter, allowing electric assistance speeds that can exceed 60 km/h. This lets you harness the full power of your Brose motor for a faster riding experience.
The SpeedFun Ribelle for Fantic operates with a special algorithm that activates when the speed reaches 16 km/h, without the cyclist noticing any change in assistance. It does not interfere at lower speeds. This important precaution avoids power losses, malfunctions, or jerky movements.
Features:
- Installation: Internal (completely invisible from the outside)
- Dimensions: 37 x 22 x 7.5 mm
- Connections: Equipped with original and/or compatible connectors (no physical modifications to the e-bike wiring required)
- Assistance: Up to over 60 km/h.
- Compatible bike model: Only for Fantic Brose Alu (Aluminum) and S-Mag (Magnesium) motors.
- Compatible displays: For Fantic e-bikes with Comfort display or Brose Allround, Central, and Remote displays
- The display shows: Always shows the correct speed and distance traveled on the bike's display
- Activation: Using assist buttons - + - + (minus, plus, minus, plus)
- Installation Guide - Brose Fantic Ribelle.pdf
Warning:
Note that using this type of modified e-bike on public roads may be illegal. The manufacturer and retailer are not responsible for damages resulting from the use of SpeedFun products. E-bikes equipped with SpeedFun products must not be used on public roads, bike paths, or public spaces. SpeedFun-equipped e-bikes are to be used solely on private property and entirely at your own risk. Using SpeedFun may void your bike's warranty. We strongly recommend using other safety features and protective gear to prevent injuries.
SpeedFun Ribelle for Brose - Fantic Usage
Initial Setup
Once the Ribelle is installed following the instructions from previous pages, a brief reset and calibration process must be performed:
- Turn on the e-bike and select one of the active assistance levels (NOT the OFF mode).
- Press the following button combination from the side buttons: -, +, -, +, -, +, -, + (minus, plus, minus, plus, minus, plus, minus, plus).
- The number 88.8 will appear on the display to confirm the data reset.
- Wait until 99.9 appears on the display.
- Pedal about one kilometer at a moderate speed (around 15 km/h). You'll notice that the number 99.9 decreases by one decimal for each wheel rotation.
- Stop when the reading reaches 0.0.
- The number 55.5 will briefly appear on the display to confirm successful calibration.
Activating and Deactivating Speed Release
To activate or deactivate the speed release, proceed as follows:
- Turn on the e-bike and select one of the active assistance levels (NOT the OFF mode).
- Press the following combination from the side buttons: -, +, -, + (minus, plus, minus, plus).
- 50 will appear on the display to confirm the activation of the speed release (high speed), or 25 for deactivation (original speed).
- This procedure can also be performed while riding.
RIBELLE SOFTWARE VERSION
To check the Ribelle software version:
- Turn off the e-bike while the assistance level is in the OFF mode.
- Upon the next startup, the Ribelle software version will briefly appear on the display (e.g., 23.3).
-
