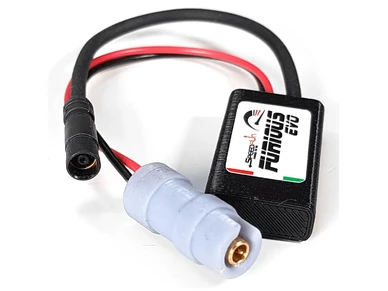

SFSHIMANO SpeedFun Furious Evo for Shimano Steps E8000 E7000 E6100 E5000 shimano ebike tuning image
SFSHIMANO SpeedFun Furious Evo for Shimano Steps E8000 E7000 E6100 E5000 shimano ebike tuning1 image
SFSHIMANO SpeedFun Furious Evo for Shimano Steps E8000 E7000 E6100 E5000 shimano ebike tuning2 image
SFSHIMANO SpeedFun Furious Evo for Shimano Steps E8000 E7000 E6100 E5000 shimano ebike tuning SFSHIMANO SpeedFun Furious Evo for Shimano Steps E8000 E7000 E6100 E5000 shimano ebike tuning1 SFSHIMANO SpeedFun Furious Evo for Shimano Steps E8000 E7000 E6100 E5000 shimano ebike tuning2
Manufacturer: SpeedFun
Product Code: SFSHIMANO
SpeedFun for Shimano E5000, E6000, E6001, E6002, E6010, E6012, E6050, E6100, E7000, E8000, and E8080 motors.
Read product description
Product availability
In stock
179,00 €
Affordable prices
Fast deliveries
Expert customer service
Finnish family business

SpeedFun Furious EVO – The Complete Tuning Solution for Shimano Steps E8000, E7000, E6100, and E5000 Motors



Want to unlock the full potential of your e-bike? SpeedFun Furious EVO for Shimano is an intelligent tuning kit specifically designed for Shimano Steps E5000, E6000, E6001, E6002, E6010, E6012, E6050, E6100, E7000, E8000, and E8080 motors. This innovative device removes the speed limiter, allowing your e-bike to exceed the original limit of 25 km/h – without complex installation. Not compatible with the electronic Di2 transmission.

Features:

  • Installation: Internal (completely invisible from outside)
  • Dimensions: 31 x 16.5 x 7.5 mm
  • Connections: Equipped with original and/or compatible connectors (does not require physical modifications to the e-bike's wiring)
  • Assistance: Up to nearly 60km/h.
  • Compatible motor: Shimano Steps E5000 E6000 E6001 E6002 E6010 E6012 E6050 E6100 E7000 E8000 E8080
  • Not compatible with the electronic Di2 transmission.
  • Compatible displays: Any display and handlebar control
  • Display shows: modified data
  • Installation Instructions-Shimano-e8000.pdf





Warning:

Please note that using such modified e-bikes on public roads may be illegal. The manufacturer and retailer do not take responsibility for damages resulting from the use of SpeedFun products. E-bikes equipped with SpeedFun products must not be used on public roads, bike paths, and public places. SpeedFun-equipped e-bikes are to be used exclusively on private property and entirely at your own risk. Using SpeedFun may void your bike's warranty. We strongly recommend utilizing other safety features and protective equipment to prevent injuries.

Appendices
ASENNUSOHJE SPEEDFUN FURIOUS EVO SHIMANO E8000 8080 7000 6100 6000 v2
ASENNUSOHJE SPEEDFUN FURIOUS EVO SHIMANO E8000 8080 7000 6100 6000 v2.pdf

SpeedFun Furious EVO for Shimano

The purpose of the Furious EVO is to manipulate the rear wheel's rotational speed and always report a speed of under 25 km/h to the motor. This enables a genuinely high speed with an active motor. The maximum speed is determined by the combined effect of the motor's power and the force exerted by the user's legs.

The device can be activated and deactivated, retaining its settings even after the bike is turned off. It can be installed on electric bikes with any type of display or assist button, as well as those without a display.

The Furious EVO does not communicate with the display. When the device is active, the display shows speeds as follows:

  • 0–16 true km/h: Shows the actual speed.
  • 16–75 true km/h: Shows the manipulated speed.

Trip data also changes when the device is active. When the device is deactivated, the bike operates in its original condition.

FURIOUS EVO EASY VERSION

  • The Furious EVO Easy version is connected as a bridge between the speed sensor and the motor.
  • Delivered ready for use in "ACTIVE" mode.

Can be activated and deactivated as needed, and the setting is retained even after the bike is turned off.

Activation and Deactivation Method:

  1. Turn off the electric bike
  2. Set the chain to the longest gear (smallest rear sprocket).
  3. Position the left pedal at the 11:00 position. Do not rotate the rear wheel at this stage.
  4. Turn on the electric bike and wait for the system check to complete. Do not rotate the rear wheel yet.
  5. Lift the rear wheel off the ground and make one strong pedal push (with your foot). Allow the bike to spin at a speed of over 30 km/h for a few seconds.

The system recognizes the acceleration and interprets it as a command to activate or deactivate the speed release (cyclically).

  • During activation, the display (if available) changes from showing the actual speed to the manipulated speed as described above.
  • During deactivation, the display shows the speed changing from manipulated to actual, and the bike returns to its original state.
